Double Single-axis Joysticks Multi toggles Wireless Remote Controller

Ask Lasest Price
Brand Name :	DKLD
Model Number :	DH-YBT12
Certification :	CE
Price :
Supply Ability :	100 sets per week

Add to Cart

Product Details
Company Profile

Double Single-axis Joysticks Multi toggles Wireless Remote Controller

support customer function customization

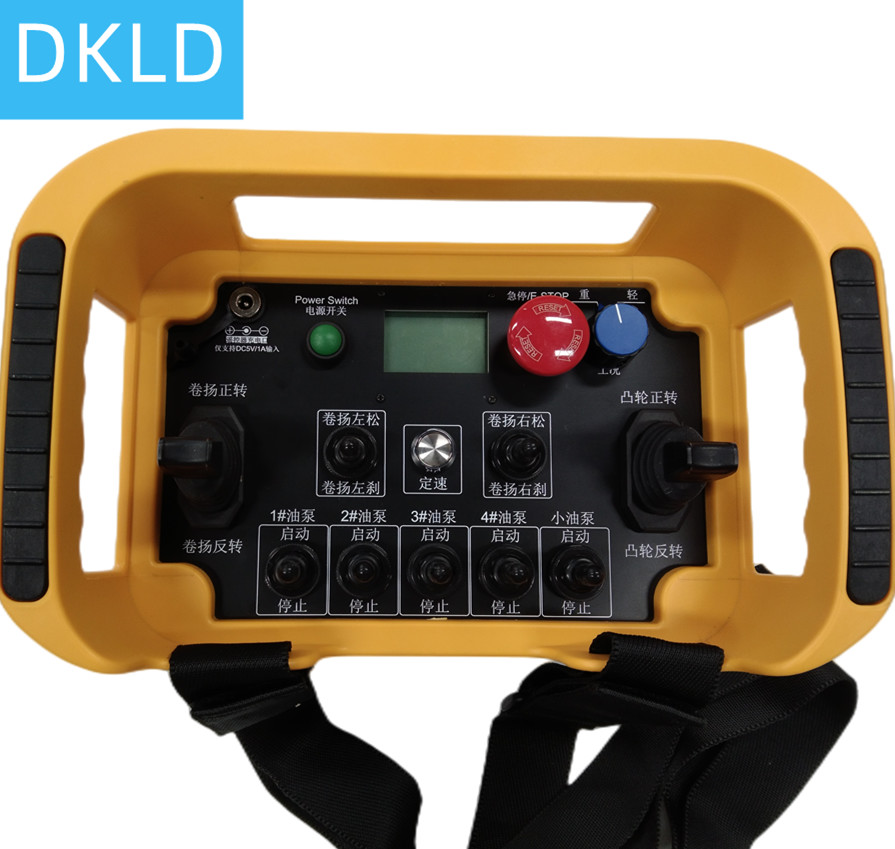

Two joysticks with multiple twist switches and buttons and rotary switches and with LCD screen remote control for industrial machinery equipment

Product Features

1. Stable control signals will ensure no interference during use. The unique signal is encrypted and coded, and there is no interference when using multiple sets of remote controllers in an environment.

2. Heartbeat packet detection: Once the transmitter is damaged or the signal is lost, the receiver will stop automatically.

3. Each set remote control has unique ID identification code, even if the same frequency also does not interfere with each other.

Double Single-axis Joysticks Multi toggles Wireless Remote Controller

Two single-axis proportional rod type industrial remote control, including 1 transmitter +1 receiver, remote control distance of 100 meters, receiver built-in, with 3 meters long extended sucker antenna, receiver end for analog control output 4-12-20mA or 0-5-10V can be provided according to demand, LCD screen feedback display from the device side of a variety of parameter combination display, Can turn the page display, and can move up and down or left and right movement display.

If the walking speed is required to be constant, the rocker control can be achieved by pressing the fixed speed button next to the layout, and the exact value of the current speed can be displayed on the LCD screen at the same time. The two rockers can be independently controlled or executed at a fixed speed.

The receiver can output control, but also can collect feedback switch quantity and analog quantity output as needed, and the collected data will be fed back to the LCD screen of the transmitter after conversion.

This model is rechargeable, one charge can be used for dozens to hundreds of hours, easy to plug and fill, automatically change from red to green after full, with its own anti-overcharging protection function, to ensure that the circuit board is not damaged due to overcharging.

Specification

Model	DH-YBT12
Transmitter Function	Customizable function
Toggle Switch	Customizable function
Size	281815.5cm
Transmitter Weight	2kg
Transmitting frequency	433MHz
Frequency channel	50~256
Controlling distance	≥100m/ distance can be customized
Transmitter Antenna	inside
Receiver Antenna	Inside / optional external antenna
Button life	≥ 1 million times
Panel & Button Material	stainless steel
Shell material	90% industrial reinforced nylon plastic + 10% industrial chemical fiber
Transmitter power supply	Embedded lithium battery
Receiver power supply	DC12V/24V or AC 36V/220V/380V (AC by external transformer)
Temperature range	-25℃~+75℃
Button Text	Arrow / English / Chinese
Enclosure protection class	IP65
Application	Gantry crane,JCB,Hoist,Port crane,Cantilever crane,Ship crane,Bridge erecting machine,Beam lifter,Elevator,Lifting platform,Windlass,Shearing machine,Sand Screening Machine,Industrial furnace door,Winch etc.

Default configuration

1. Transmitter * 1 piece

2. Receivers * 1 piece

3. Strap * 1 piece

4. Free Joystick * 1 piece

5. The receiver comes with 1m cable connector

6. Operation and Maintenance Manual

Attentions

1. When you order, please remark the voltage. Or you can contact to supplier.

2. Generally, the receiver is installed in the distribution box. If not, we will prepare the receiver housing for external installation. If you neet the shell, please let us know when placing the order.

Warranty & Service

1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.

Packing & Delivery

Certification

Customized distance box-type industrial radio remote controller for telecrane ladder truck remote controller hoist

FAQ

1.Q: Is there a warranty?
A: All our branded products have a 12-month warranty period. We provide 24-hour after-sales service and technical support. If you find any problems during installation, please feel free to contact us.
2. Q: Will you provide after-sales service?
A: Yes. Of course. If there are any problems during operation or installation, please keep free to contact with us. We provide professional guidance and help.
3. Q: What is your minimum order?
A: We can accept sample orders for trial orders.
4. Q: What certificates are approved for your product?
A: We have CE, FCC, ISO9001.
5. Q: Is your price the lowest?
A: We provide high quality industrial remote controls. The quality of our supply is value for money, inferior products will waste and affect the work process. The right price and high quality products are the best choice.
6. Q: Can you customize it to my needs?
A: You can send me inquiries according to your needs. We can customize them with technical engineers.

Nanjing Dihuai Electronic Technology Co., Ltd., with a registered capital of 5 million yuan, is a professional developer of industrial remote control and a leading enterprise in the domestic industrial wireless remote control industry. It is committed to the R & D, customization, design and sales of industrial remote control products, industrial intelligent automation products, industrial Internet of things software and hardware products, and industrial electronic products.
Our company is dedicated to building a series of technology-based, industrial level wireless intelligent automation products with technology first and innovation first. The company has a group of senior research and development design teams who are proficient in industrial level wireless intelligent transmission control, industrial level automation products, industrial level intelligent monitoring and control technology of the Internet of things.
