DHM-8FD Up and down 3 speed, left and right 4 speed, front and rear
2 speed tower crane wireless remote control
Up and down 3 speed, left and right 4 speed, front and rear 2 speed
tower crane wireless remote control, there are 4 types, 2 of which
are button type, and the other 2 are double rocker type;
Type 1 (standard)
The up, down, left, and right front and rear are two-speed button
type, each button is a two-stage node, that is, two speed control
button types, when it is halfway down, it is 1 speed, corresponding
to the 1 speed relay on the receiver side, press At the end, it is
2 speed, corresponding to the receiver side 1 speed and 2 speed
relays are both closed and turned on. At this time, it is fast.
This type realizes 2 speed control in each direction.
Start+emergency stop knob is a necessary function button. Start is
to start the transmitter's local power supply, and at the same
time, it corresponds to the connection of the main output control
loop of the receiver. When the emergency stop is photographed, the
main output control loop of the receiver is instantly cut off. ,
And cut off the total power supply of the controlled end equipment
at the same time to ensure safe and reliable operation.
product model DHM-8FD.
Type two (customized type)
It is also a push-button type. Originally, there are several speeds
to achieve control of several speeds. Continuous pressing of the
button can achieve the delayed acceleration function, such as
automatically increasing one level of speed every 5 seconds, and 2
speeds correspond to the output of 1 speed and 2 speed relays. 3
speed corresponds to 1 speed 2 speed 3 speed relay output, 4 speed
corresponds to 1 speed 2 speed 3 speed 4 speed relay output.
The layout of the buttons is as follows
up, down, automatic/manual
East, West, high/low speed
South, North, lighting on/off
1, 2, lock/unlock
There is also a start + emergency stop knob layout on the top of
the transmitter.
Automatically, it means that pressing the button continuously can
achieve the purpose of delayed acceleration;
In manual mode, you can quickly click twice to achieve 2-speed
control, and quickly click 3 times to achieve 3-speed control;
At high speed, as long as the button is operated, it is high-speed
action, such as up and down action, as long as the operation is 3
speed, front and rear action, as long as the operation is 2 speed
action, left and right swing, as long as the operation is 4 speed
action;
At low speed, as long as the button is operated, it is high-speed
action, such as up and down action, as long as the operation is 1
speed, front and rear action, as long as the operation is 1 speed
action, left and right swing, as long as the operation is 1 speed
action;
The "lock/unlock" button is used to temporarily lock the panel
button function when walking away temporarily to avoid the
possibility of misoperation due to accidental touch or falling to
the ground. In addition, it can be combined with the emergency stop
knob to achieve the same type of transmitter or receiver The
function of temporary code matching of the transmitter, or the
pairing operation of a newly equipped transmitter or receiver,
etc.;
Start+emergency stop, start corresponding to the transmitter's
local power supply, at the same time the corresponding receiver
main output control loop is connected, emergency stop shooting, can
cut off all outputs of the receiver, emergency stop actually
corresponds to 2 relay outputs, including 1 Normally open point +
one normally closed point relay, normally use normally open point,
normally closed point as backup;
This machine model DH-Z6FD (DC24V/250m/1 send and 1 receive/relay
output), other voltages are equipped with external transformer
adaptation!
| Model | DHM-8FD |
| Transmitter Function | Customization |
| Size | 39*26*21cm
|
| Transmitter Weight | 2.9kg |
| Transmitting fraquency | 433MHz |
| Control distance |
≥100m/can be customized ≤2000m |
| Application Equipment | Industrial Equipment |
| Application | placing trolley,PC component |

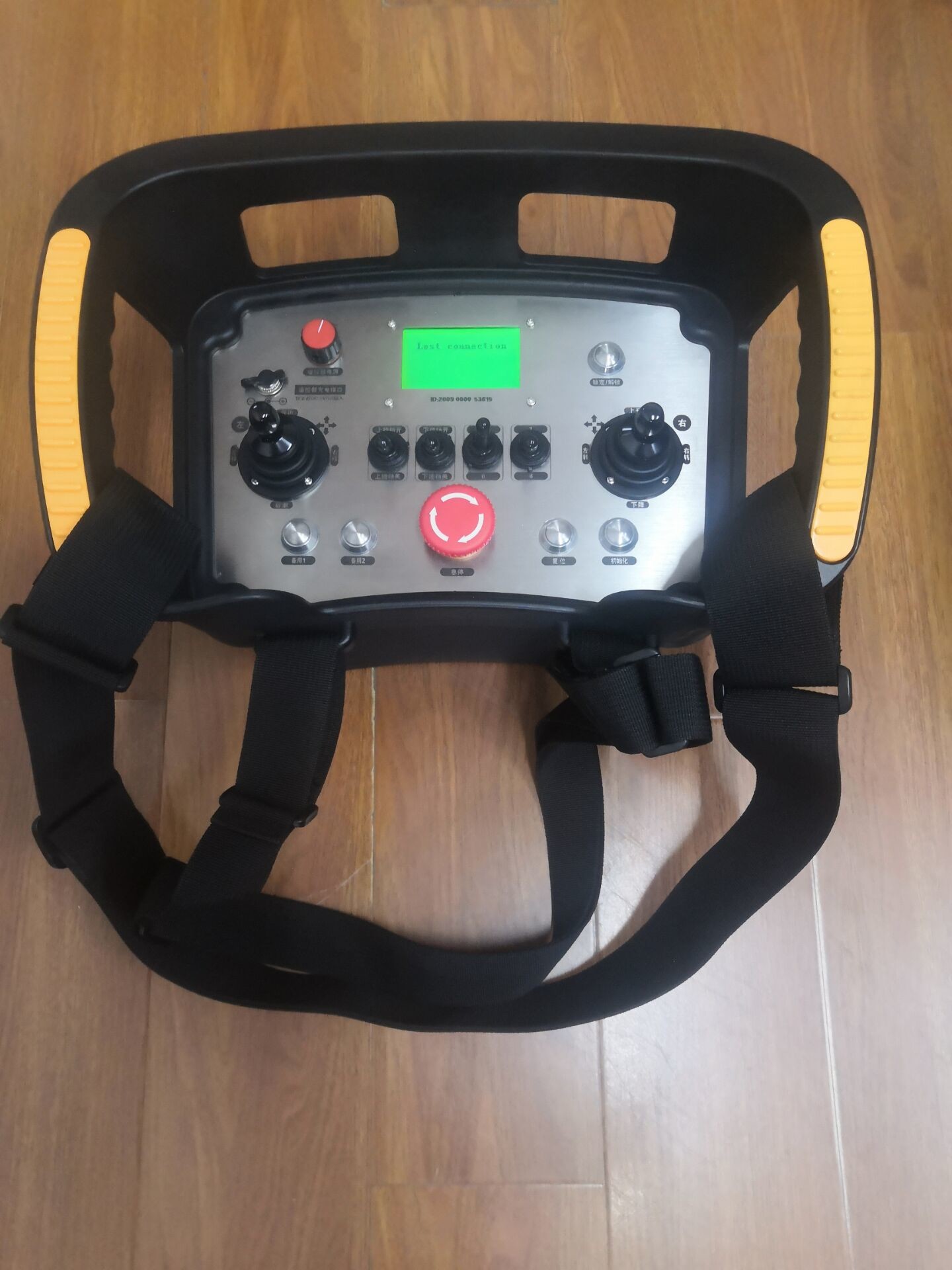

Our products are different from the plastic remote controller on
the market. The stainless steel remote control is more strong and
durable.
1. The Joystick is more convenient and sensitive. 5-node paragraph
joystick, optional 5-speed, easy to operate.
2. Stable control signals will ensure no interference during use.
The unique signal is encrypted and coded, and there is no
interference when using multiple sets of remote controllers in an
environment.
3. The transmitter is sealed with silicone rubber ring, which is
good waterproof.
♦ More Options More Function
The function can be customized according to your requirements,
please contact the supplier.
Default configuration
1. Transmitter * 1 piece
2. Receivers * 1 piece
3. Strap * 1 piece
4. Free Joystick * 1 piece
5. The receiver comes with 1m cable connector
6. Operation and Maintenance Manual
Attentions
1. Due to transportation requirements, the product is not equipped
with battery.
2. The function can be customized according to your requirements,
please contact the supplier.
Warranty & Service
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
