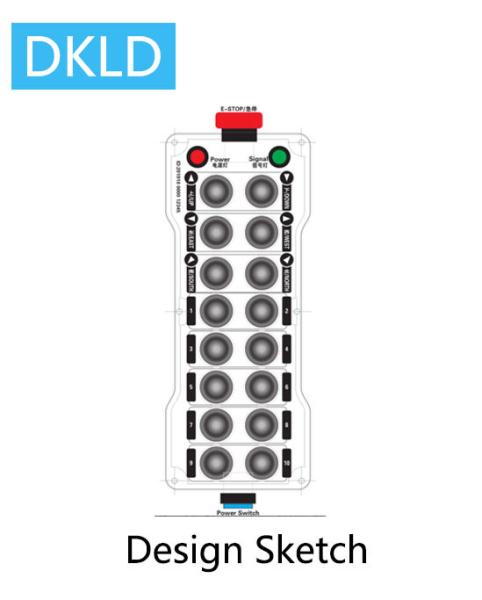

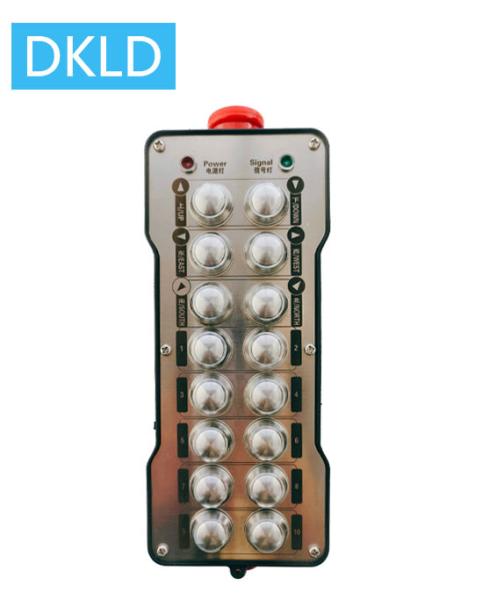

16-way switch industrial remote control DH-Z16F, with button text identification: UP, Down, EAST, West, South, North, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, start, stop, power indicator, signal indicator;

Main function: Control the equipment to run up, down, east, west, north, and south in a conventional jog mode, with up and down interlocking, east-west interlocking, north-south interlocking, 1 and 2 interlocking, 3 and 4 interlocking, 5 and 6 interlocking, 7 and 8 interlocking, 9 and 10 interlocking.

Product highlight: Good anti-interference performance, with unique identification codes between each remote control transmitter and receiver, reaching hundreds of millions of sets, never repeating, and strictly avoiding mutual interference and potential interference. And the remote control has up to 50-256 frequency points, and each set in the same environment can be configured with separate frequency points. Even if the frequency points overlap, given the uniqueness of the ID identification code, there will be no impact on each other, ensuring safety and reliability.

Usage: crane, crown block, crane, three hoist crane, three trolley crane, gantry crane, portal crane, port crane, bridge erecting machine, beam lifting machine, etc. with main and auxiliary hooks within 16 point switch value, as well as elevator, winch, motor, plate shear, sand screen, concrete pump, electric flat car, cantilever crane, industrial furnace door, etc.

Technical parameters: remote control distance of 100 meters, 250 meters, working temperature of -35 ° -+75 °, transmitter power supply of 3 No. 5 dry batteries of 4.5V, receiver terminal conventional working voltage of 12-24V AC/DC, other voltages of AC220V or AC380V, etc., can be adapted through external transformer voltage conversion.

Model and configuration instructions: This machine model DH-Z16F comes standard with 1 transmitter and 1 receiver. The transmitter antenna is built-in, and the receiver is equipped with an external extended suction cup antenna (1 meter long feeder), which is attached to the outside of the distribution box and installed inside the receiver.

Direct sales from the source manufacturer！

Three year warranty！

Nanjing Dihuai Electronic Technology Co., LTD., located in Nanjing, Jiangsu Province, China, is manufacturer of industrial remote control. At present, it has been involved in the non-standard customization of industrial wireless / wired remote control for thousands of devices.

We have 29 new practical technology patents and appearance patents of the company's special products, and have the capability of functional design and development for various non-standard and customized requirements such as software, hardware, circuit design, panel logo design and layout design.

Products include:

Remote control of construction vehicle such as:

Unmanned vehicles, excavators, tunnel boring machine remote control, remote control remote control remote control of shield machine, garbage trucks, sanitation car remote control, remote control car remote control, remote control, concrete pump truck behind stage snowmobiles, paver, remote control, remote control robot arm, loading machine, unloading machine remote control, remote control remote control dump trucks, loader remote control, remote control, tractor repair car remote control Vehicle remote control, mobile crushing station remote control, bucket turbine remote control, tracked vehicle remote control, orchard transport vehicle remote control, pesticide spray vehicle remote control, sugarcane harvester remote control, fire truck remote control, etc.

Construction machinery remote control such as:

Tower crane remote control, port crane remote control, hoist remote control, winch remote control, ship crane remote control, hoist remote control, chain hoist remote control, bevel machine remote control, opening machine remote control, stone cutting machine remote control, Longmen remote control, manipulator remote control, mechanical arm remote control, etc.

Robot car remote control such as:

Fire robot remote control, welding robot remote control, AGV car remote control, RGV car remote control, intelligent manipulator remote control, EMS car remote control, etc.

Other non-standard customized remote control:

wireless video function remote control, 1000-5000 meters long working distance remote control, ultra-low temperature -40 degrees remote control, wired controller, multi-to-multi-selection remote control, etc.

DiHuai products are the priority choice for you!
